Horticulture and Agricultural tractor Kubota pulley

Basic Info

Model No.: CH-GP011 INT-PLM-BRKT0318

Type: Reel Mowers, V-belt With Bush And Keyway

Moving Way: Tractor-Mounted

Cutter Type: Sickle-bar Mower

Applicable Area: 1000-5000m²

Feature: Other

Certification: CE, GS

Cutter Kind: Straight Metal Blade

Mowing Requirements: Halfway Type

Usage: Common Lawn, Forest Lawn

Power Source: Power

Surface: Zinc Plated

Used For Vehicle: Lawn Mower And Kubota Tractor

Keyway Width: 6.35mm

Id: 25.4mm

OD: 158.75mm

Additional Info

Packaging: cartons and pallets

Productivity: 50000

Brand: CH

Transportation: Ocean,Land,Air

Place of Origin: Taizhou

Supply Ability: 20000

Certificate: IATF16949

HS Code: 8483900090

Port: Ningbo,Shanghai

Product Description

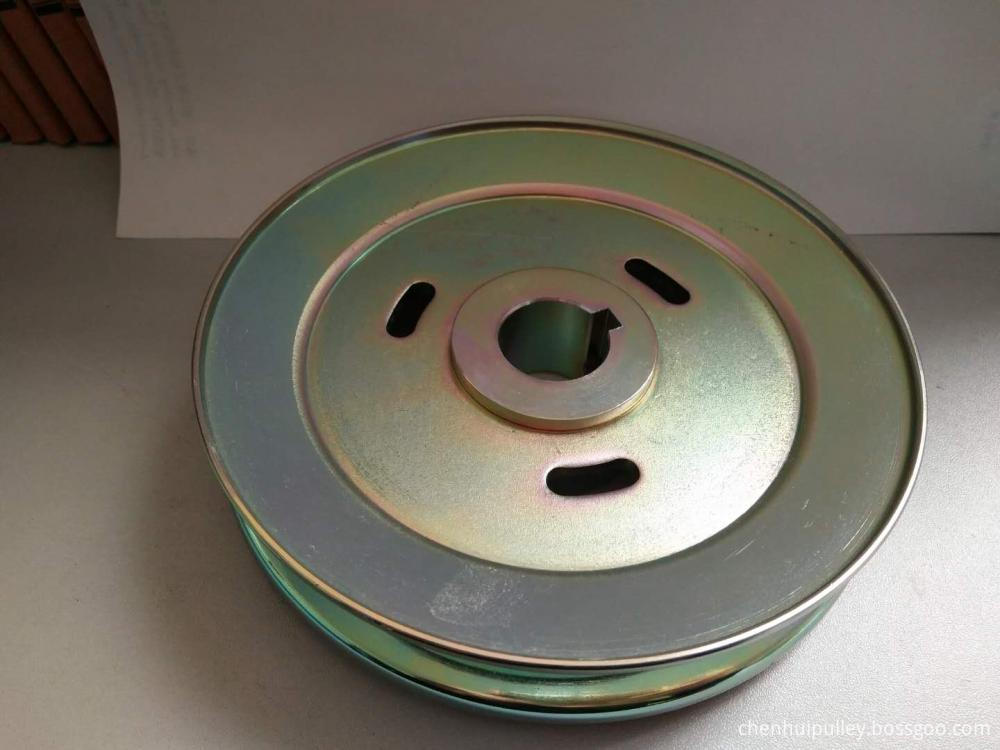

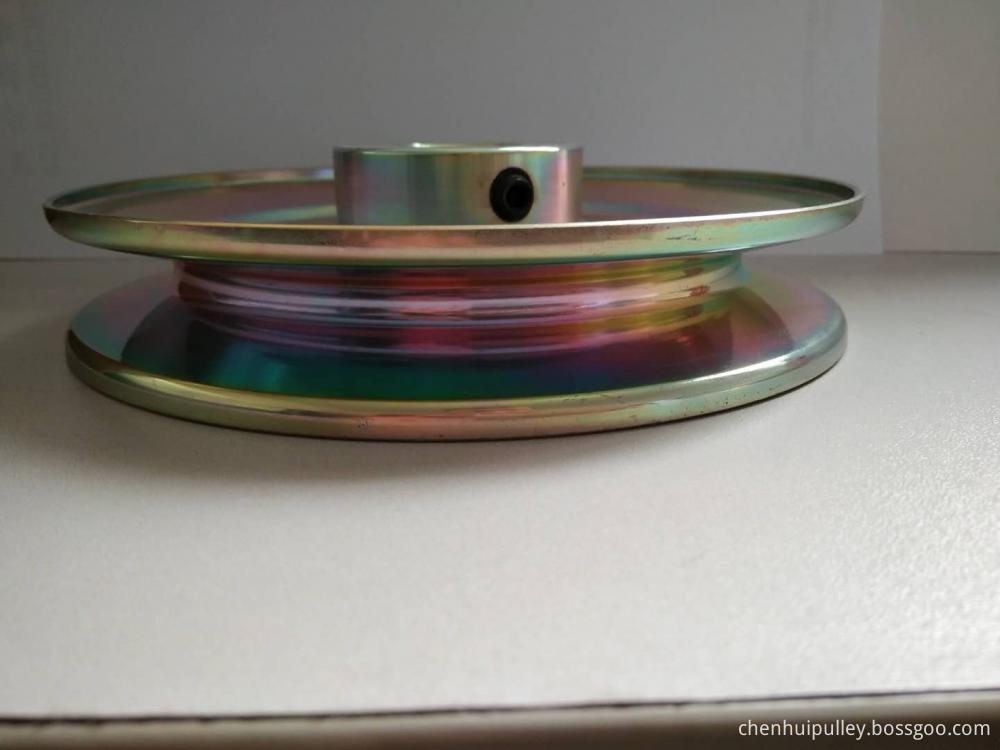

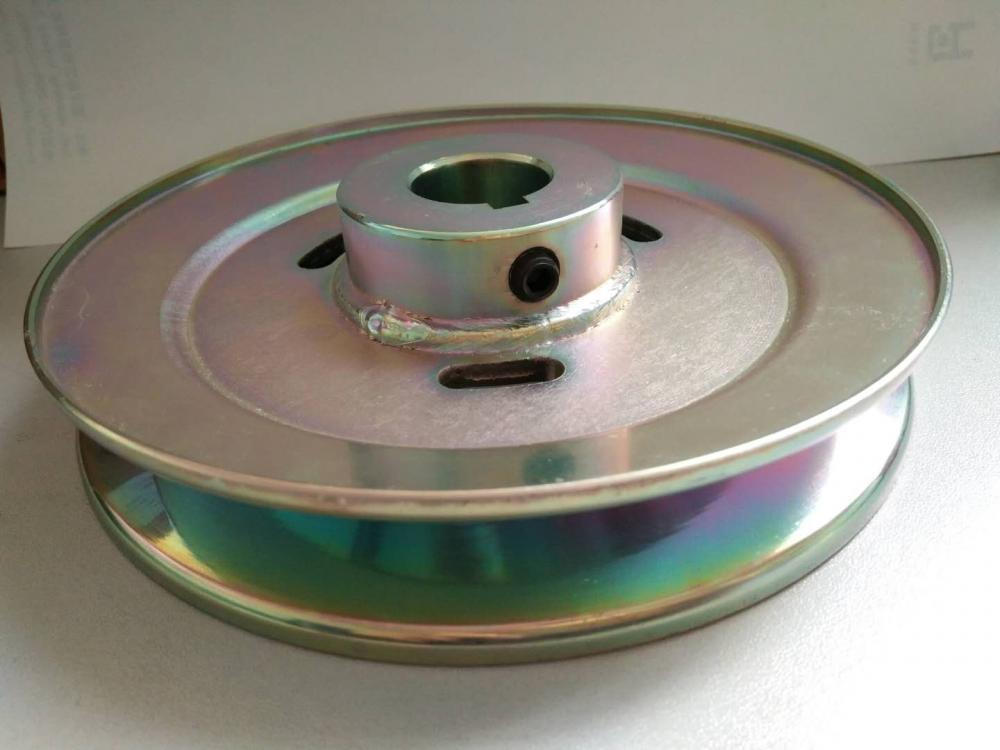

This INT-PLM-BRKT0318 V-belt pulley with 1/4" keyway and  bush is used for the Agricultural Kubato tractor, OD is 158.75mm, ID is 25.4mm, pulley height is 28mm,  weight about 1060grams.

All the surface is zinc plated.

Taizhou Chenhui is professional in manufacturing Auto Power steering pump pulley, belt PK pulley, steel pulley, spinning pulley, groove pulley, steel stamped pulley, multi-tribbed idler pulley, and Lawn mower pulley, etc.

Made by SPHC steel sheet, first cut into pieces,punch hole, welding bush, CNC machine, broaching keyway, zinc plated, etc

Every process and semi-finished parts will be inspected carefully.

Our production and management are strictly according to ISO9001:2000 & IATF16949:2016 & ISO14000;

Used for driving lawn mower etc.

The type is spinning V-belt.
CH-GP011   INT-PLM-BRKT0318
