Horticulture lawn mower pulley P1002

Basic Info

Model No.: CH-GP047 P1002

Type: Reel Mowers, Flat With Bush

Moving Way: Tractor-Mounted

Cutter Type: Sickle-bar Mower

Applicable Area: 1000-5000m²

Feature: Other

Certification: CE, GS

Cutter Kind: Straight Metal Blade

Mowing Requirements: Halfway Type

Usage: Common Lawn, Forest Lawn

Power Source: Power

Surface: Zinc Plated

Used For Vehicle: Lawn Mower

Id: 33.7mm

OD: 123.5mm

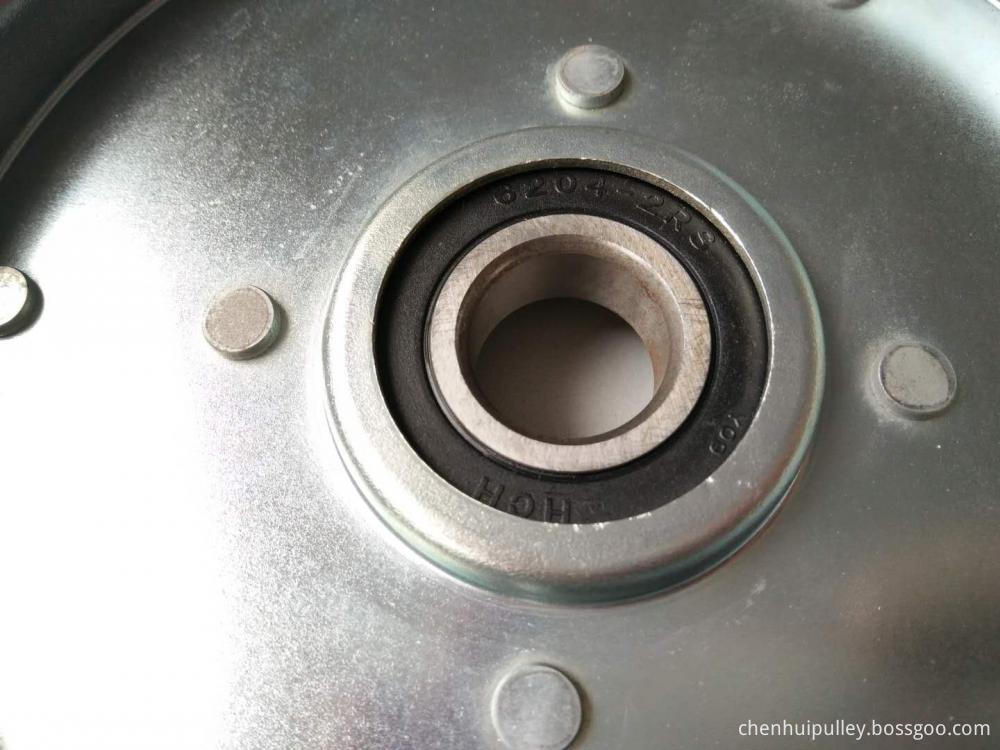

Bearing: 6203-2RS

Additional Info

Packaging: cartons and pallets

Productivity: 50000

Brand: CH

Transportation: Ocean,Land,Air

Place of Origin: Taizhou

Supply Ability: 20000

Certificate: IATF16949

HS Code: 8483900090

Port: Ningbo,Shanghai

Product Description

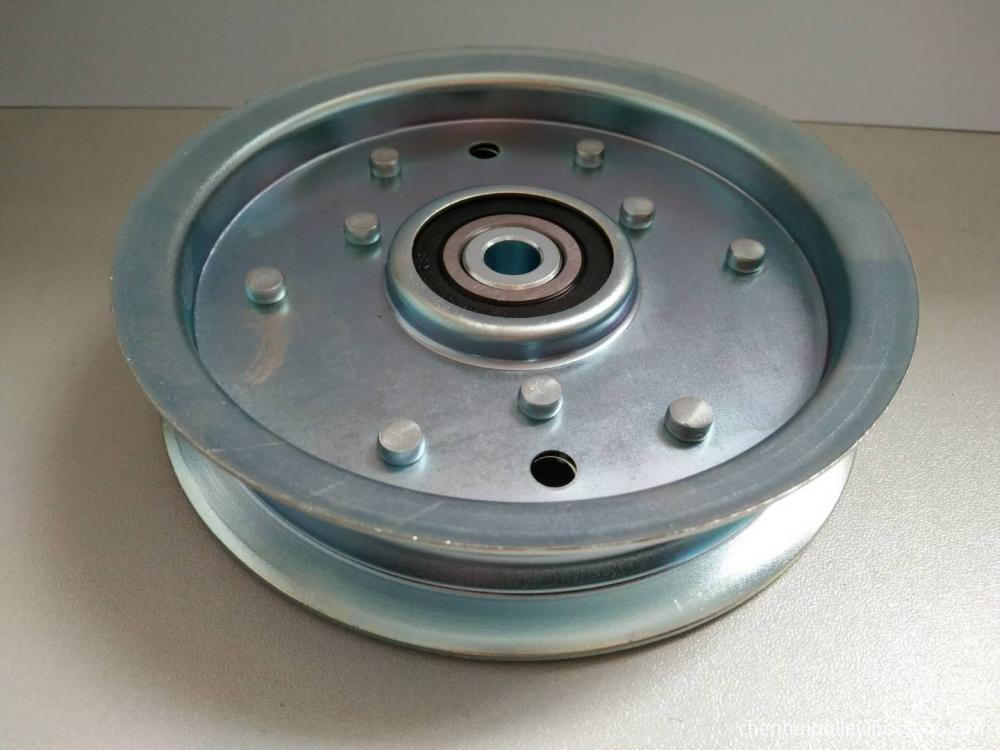

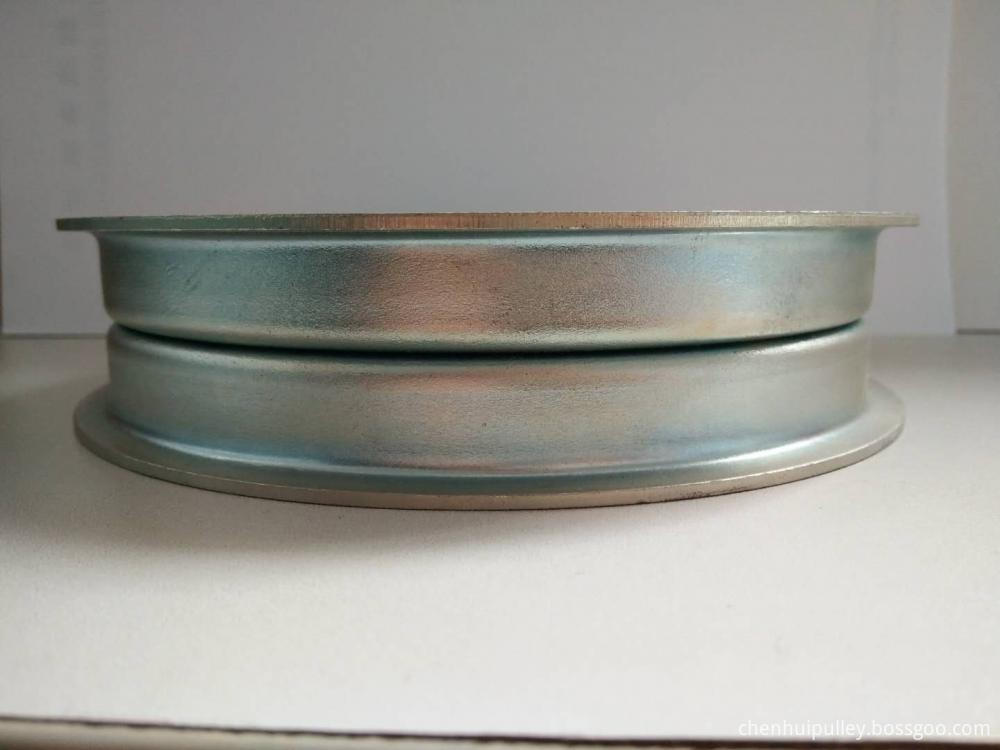

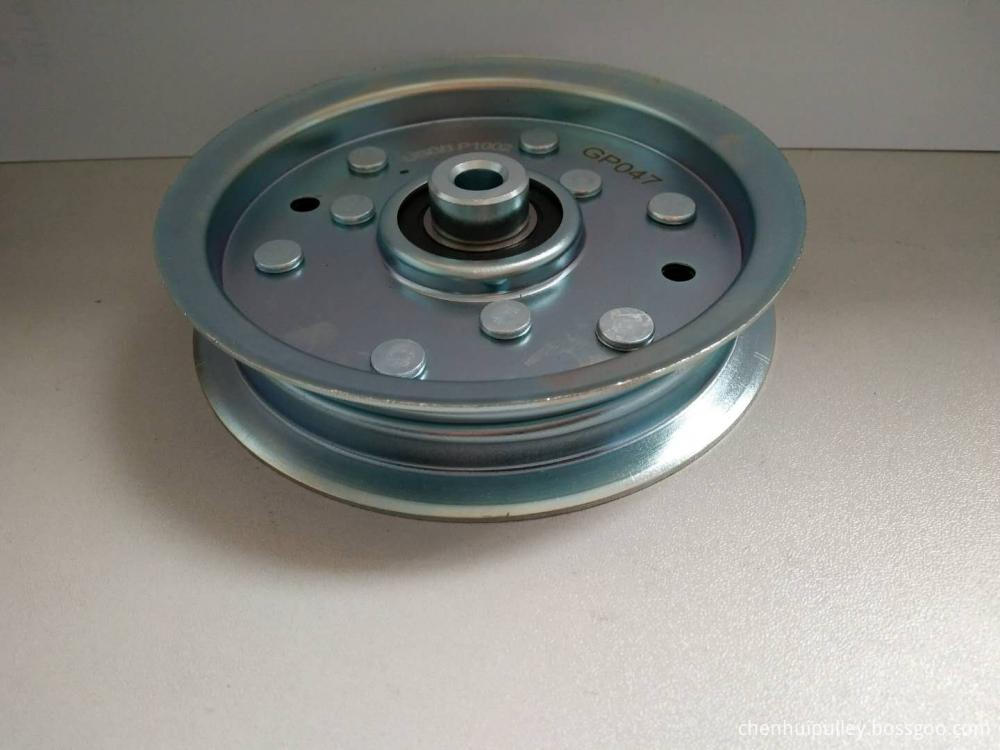

ThisP1002 flat rivet pulley with bearing 6203-2RS is used for the Gardening and Horticulture lawn mower, OD is 123.5mm, ID is 33.7mm, pulley height is 27mm.

All the surface is blue zinc plated.

Taizhou Chenhui is professional in manufacturing Auto Power steering pump pulley, belt PK pulley, steel pulley, spinning pulley, groove pulley, steel stamped pulley, multi-tribbed idler pulley, and Lawn mower pulley, etc.

Made by SPHC steel sheet and S45C , first cut into pieces, punch hole, assembly bearing, press rivets, zinc plated, assembly bush, packing, etc

Every process and semi-finished parts will be inspected carefully.

Our production and management are strictly according to ISO9001:2000 & IATF16949:2016 & ISO14000;

Used for driving lawn mower etc.

The type is Flat idler.
CH-GP047   P1002
